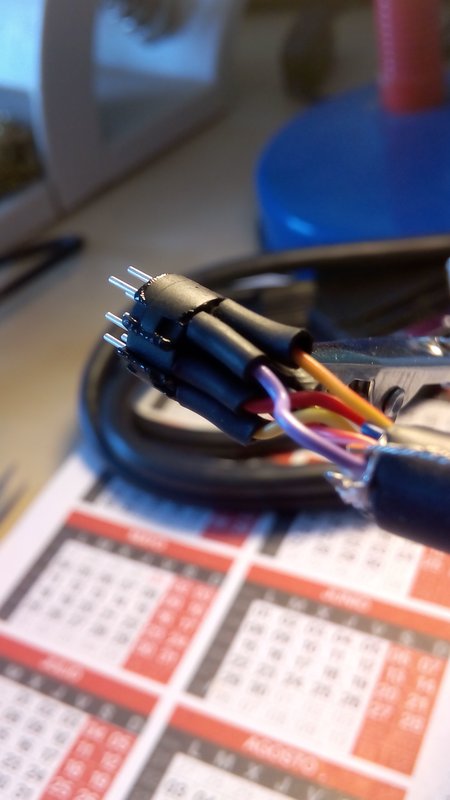

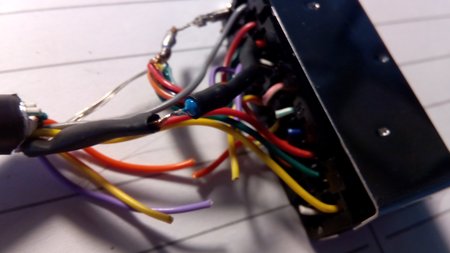

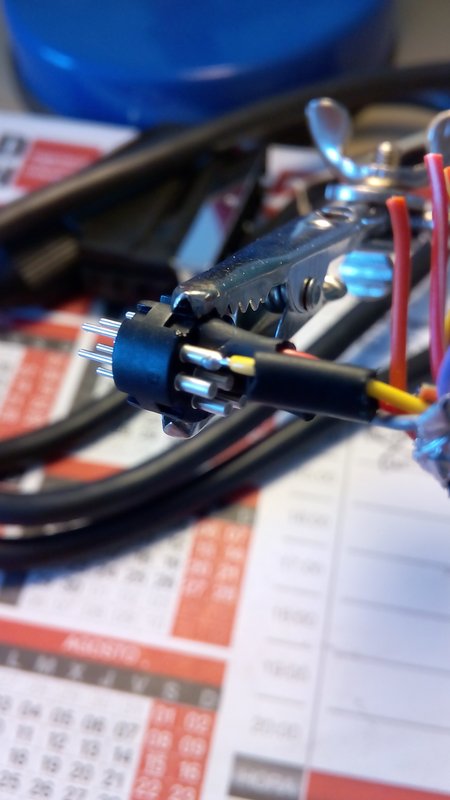

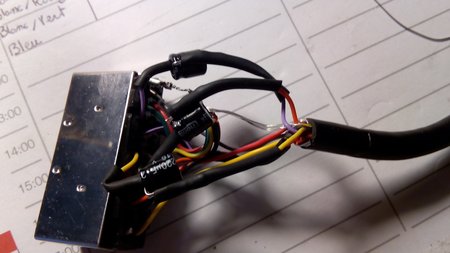

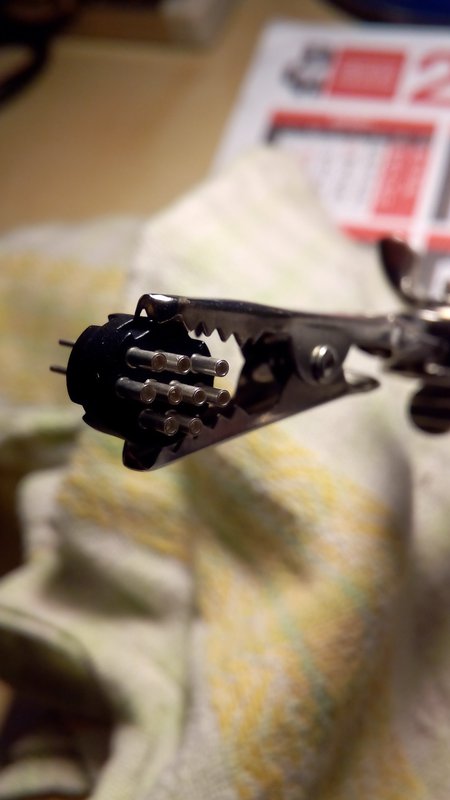

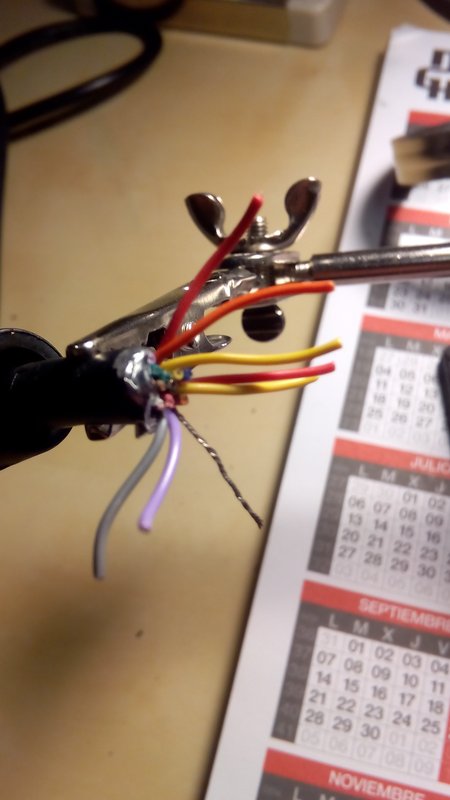

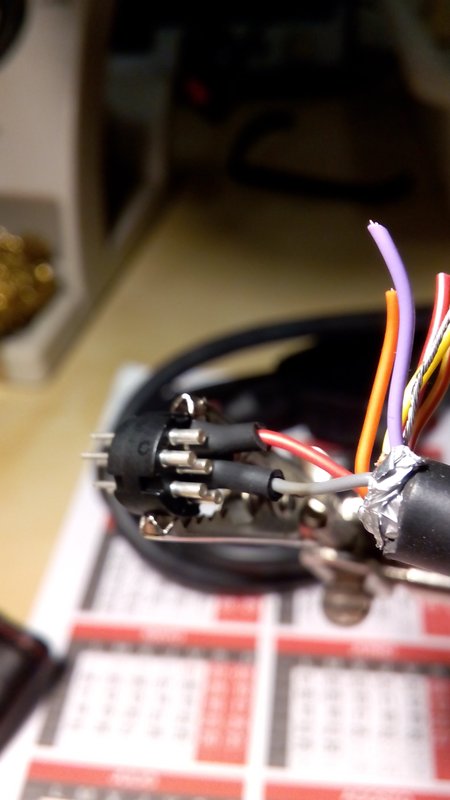

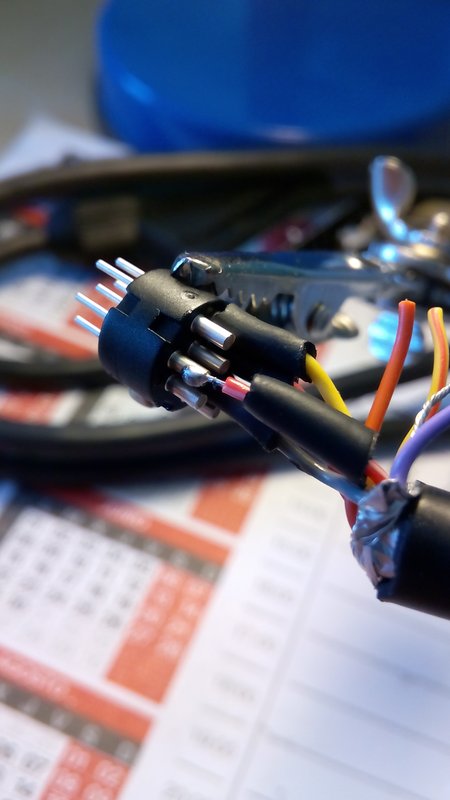

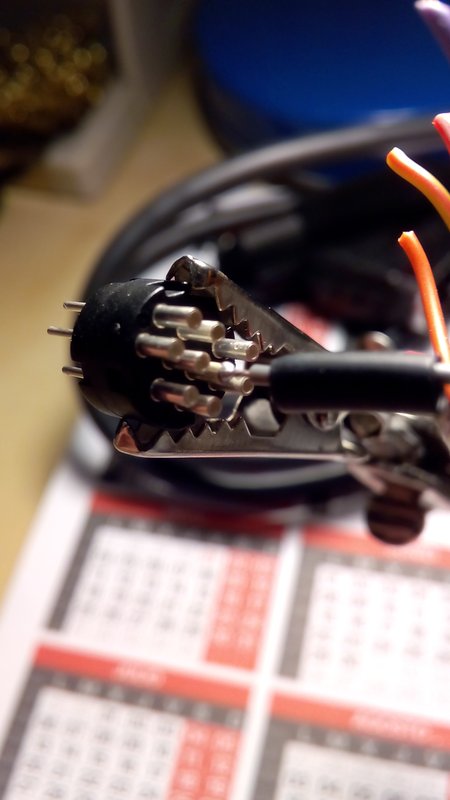

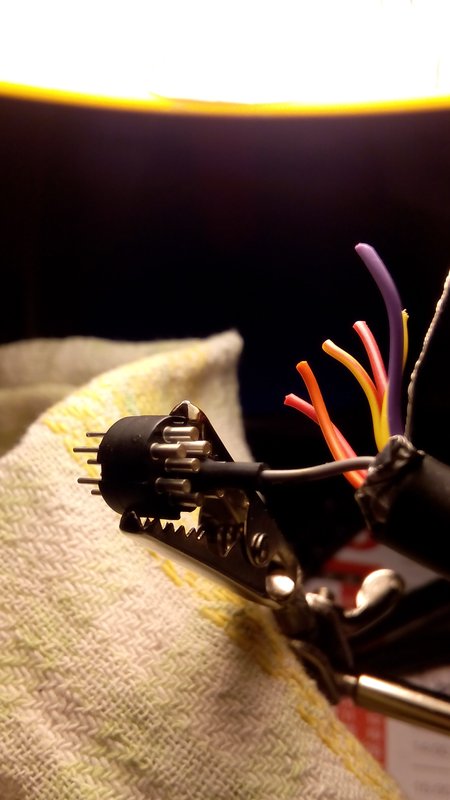

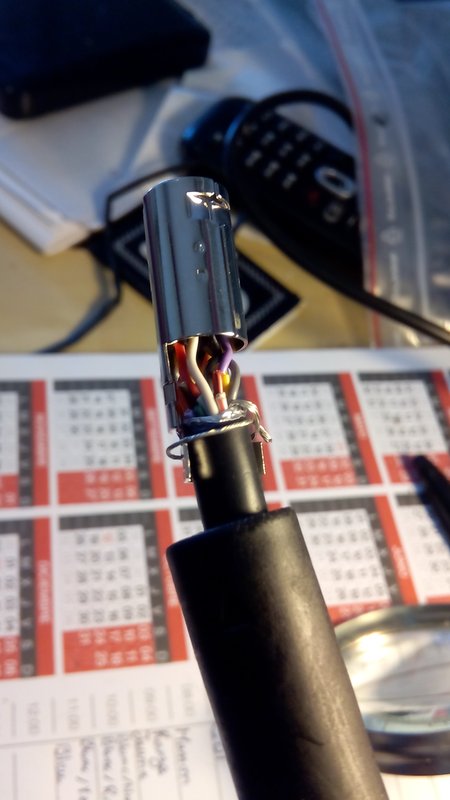

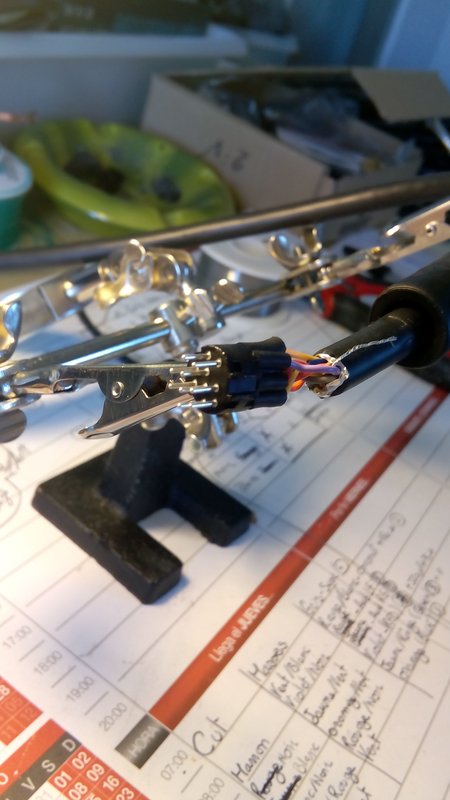

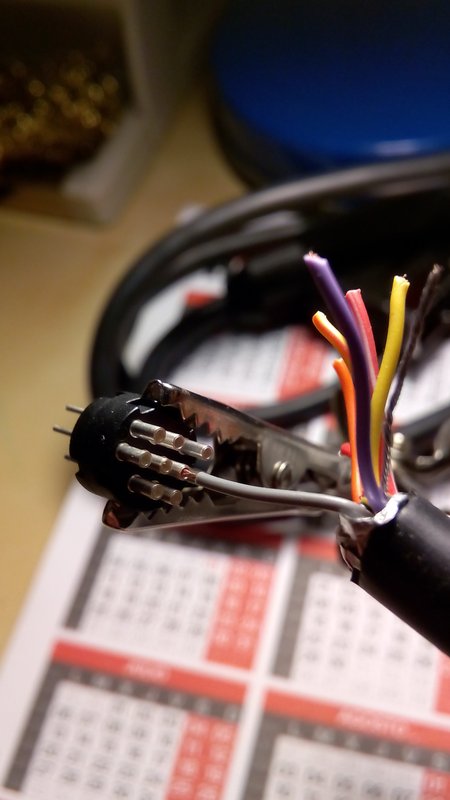

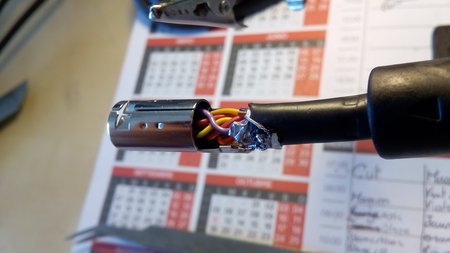

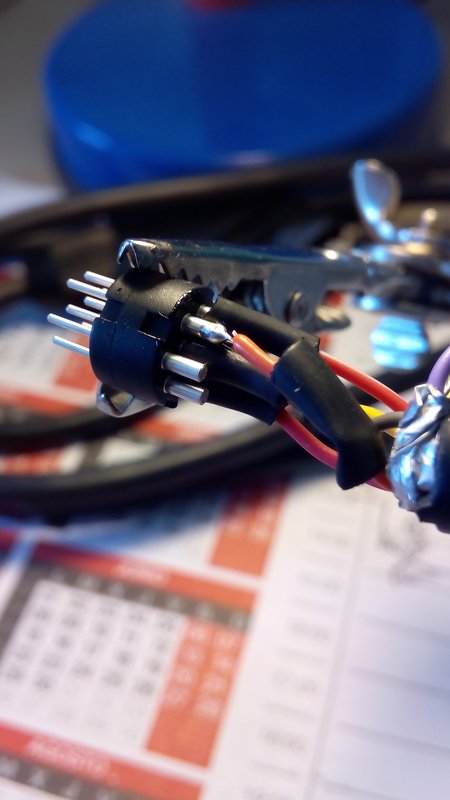

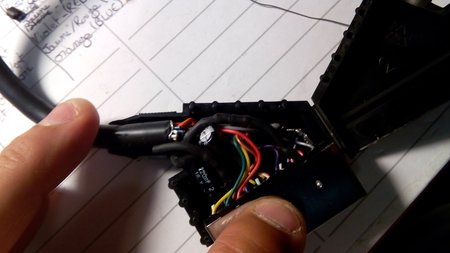

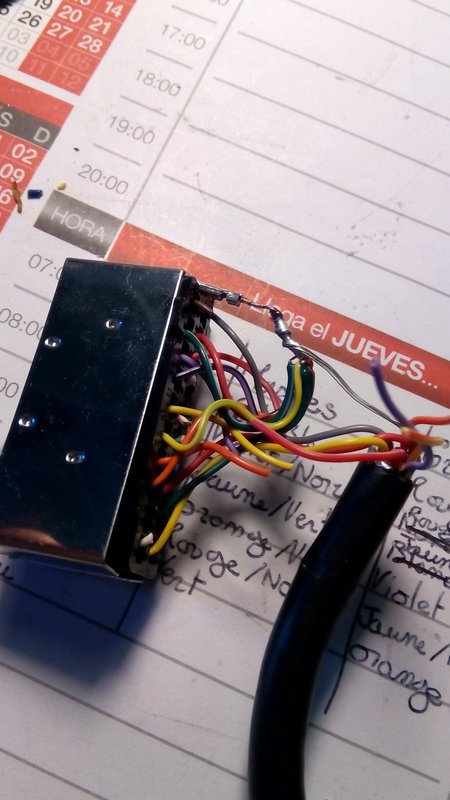

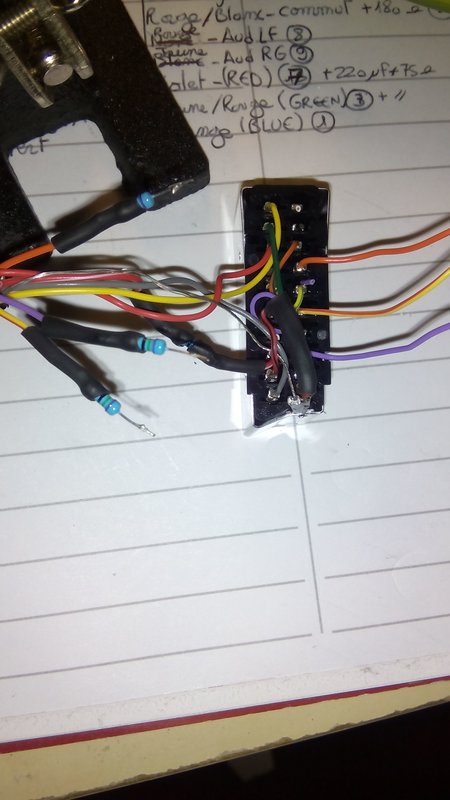

1. MD2 RGB Cable

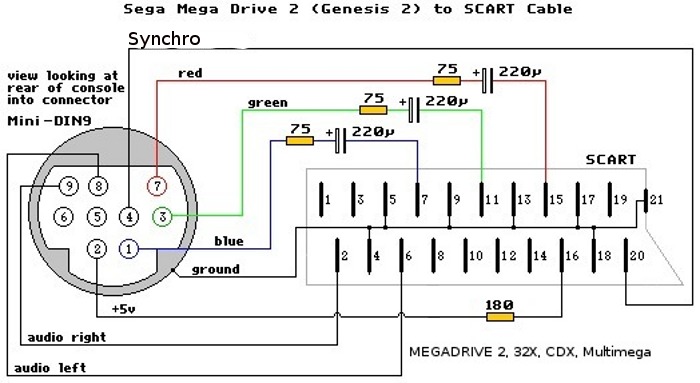

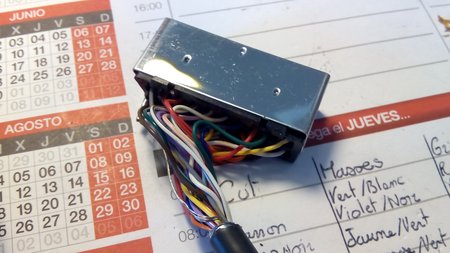

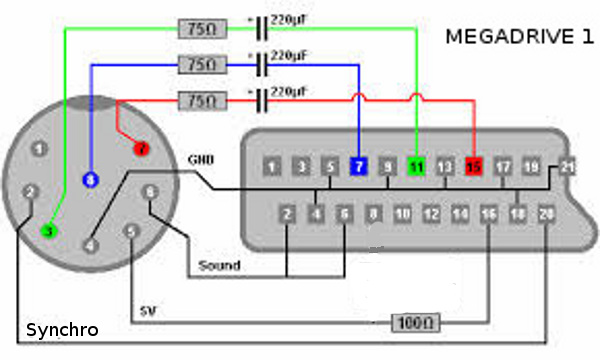

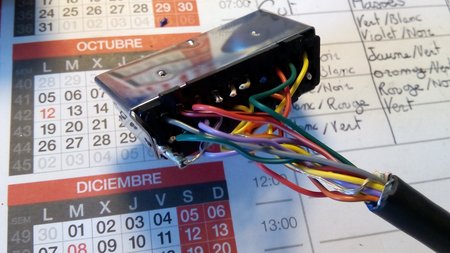

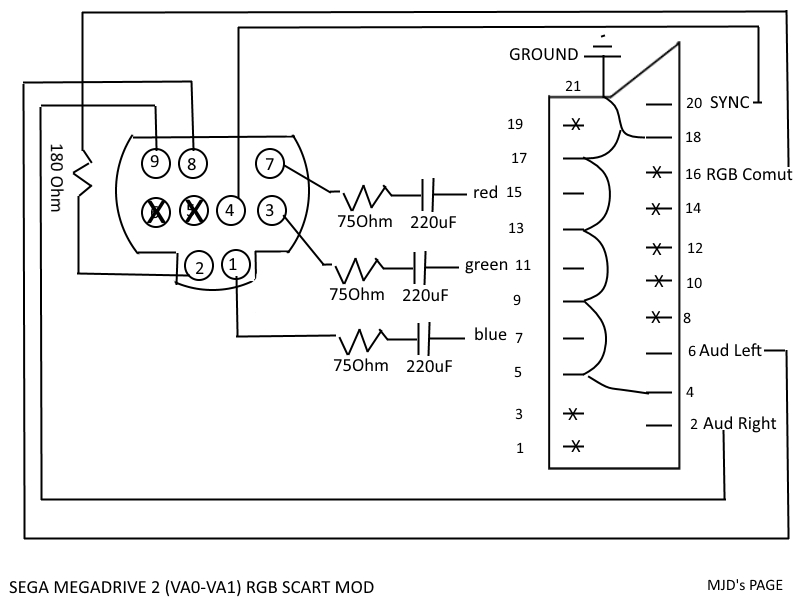

MD2 scart info
Cut > 1, 3, 19, 8, 10, 12, 14
Link to ground > 5, 9, 13, 17, 21, 4, 18
RGB switch = scart pin 16 = mini DIN pin 2. Put an 180 Ohm (or 150 Ohm) between.

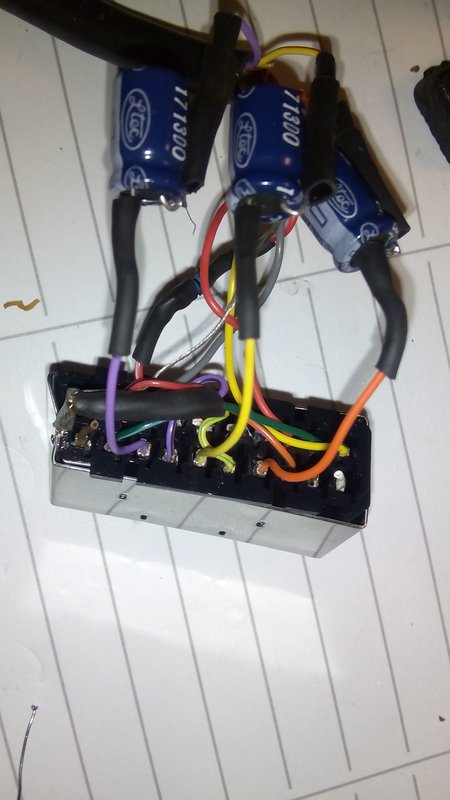

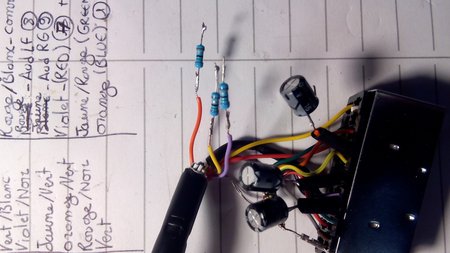

RED = scart pin 15 = mini DIN pin 7. Minus of 220 uF capacitor on scart pin 15 & 75 Ohms resistor on + and DIN pin 7
GREEN = scart pin 11 = mini DIN pin 3. Minus of 220 uF capacitor on scart pin 15 & 75 Ohms resistor on + and DIN pin 3
BLUE = scart pin 7 = mini DIN pin 1. Minus of 220 uF capacitor on scart pin 15 & 75 Ohms resistor on + and DIN pin 1
Synchro = scart pin 20 = mini DIN pin 4
2. MD2 Switchless
Material:
-1x pic 16F630
-Seb code (see link below)
-Pic writer
-2x 22O Ohm resistors
-1x PNP bi-led

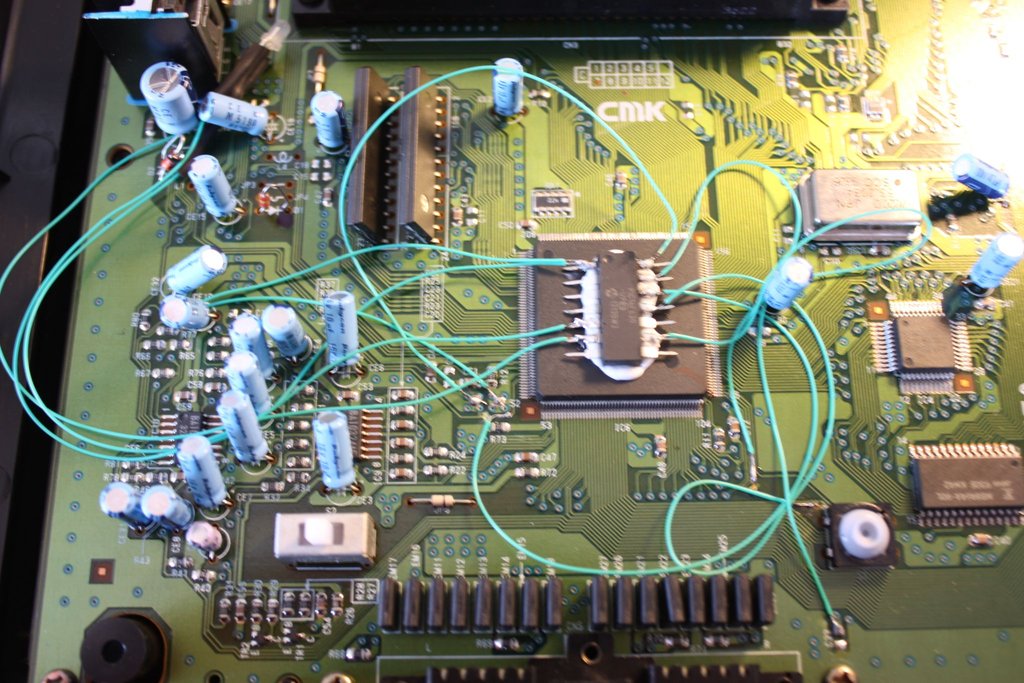

-Check pictures for detail of installation.

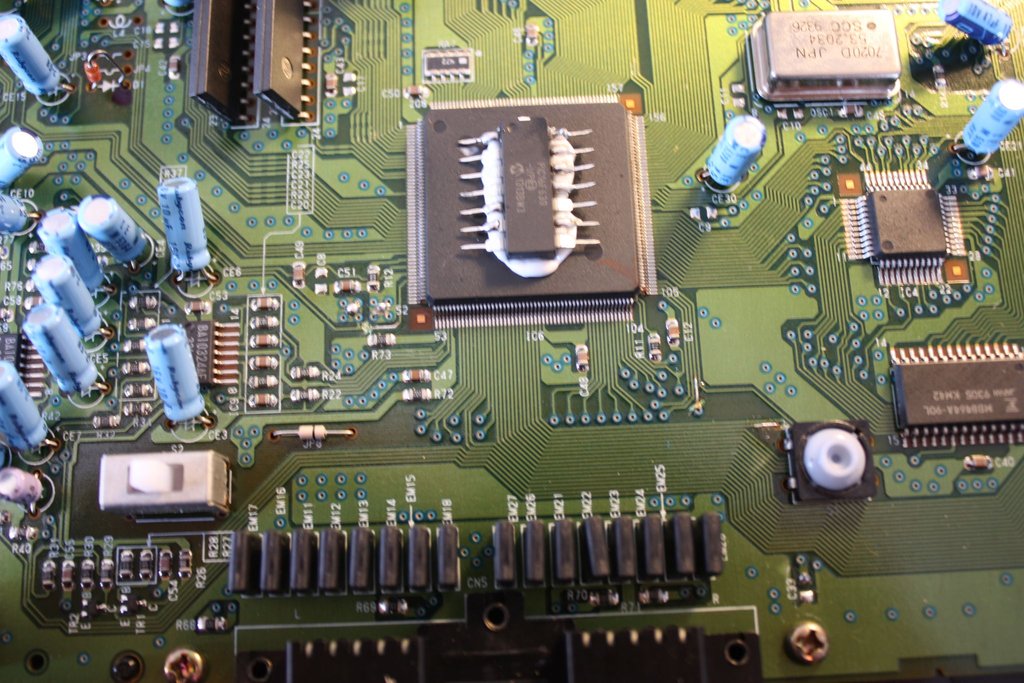

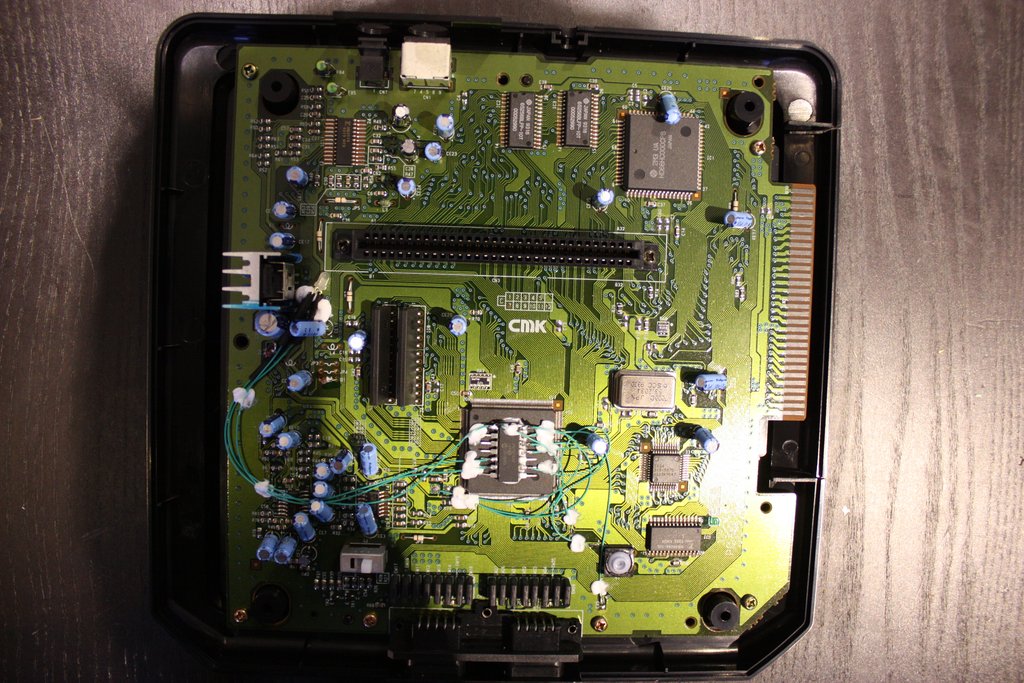

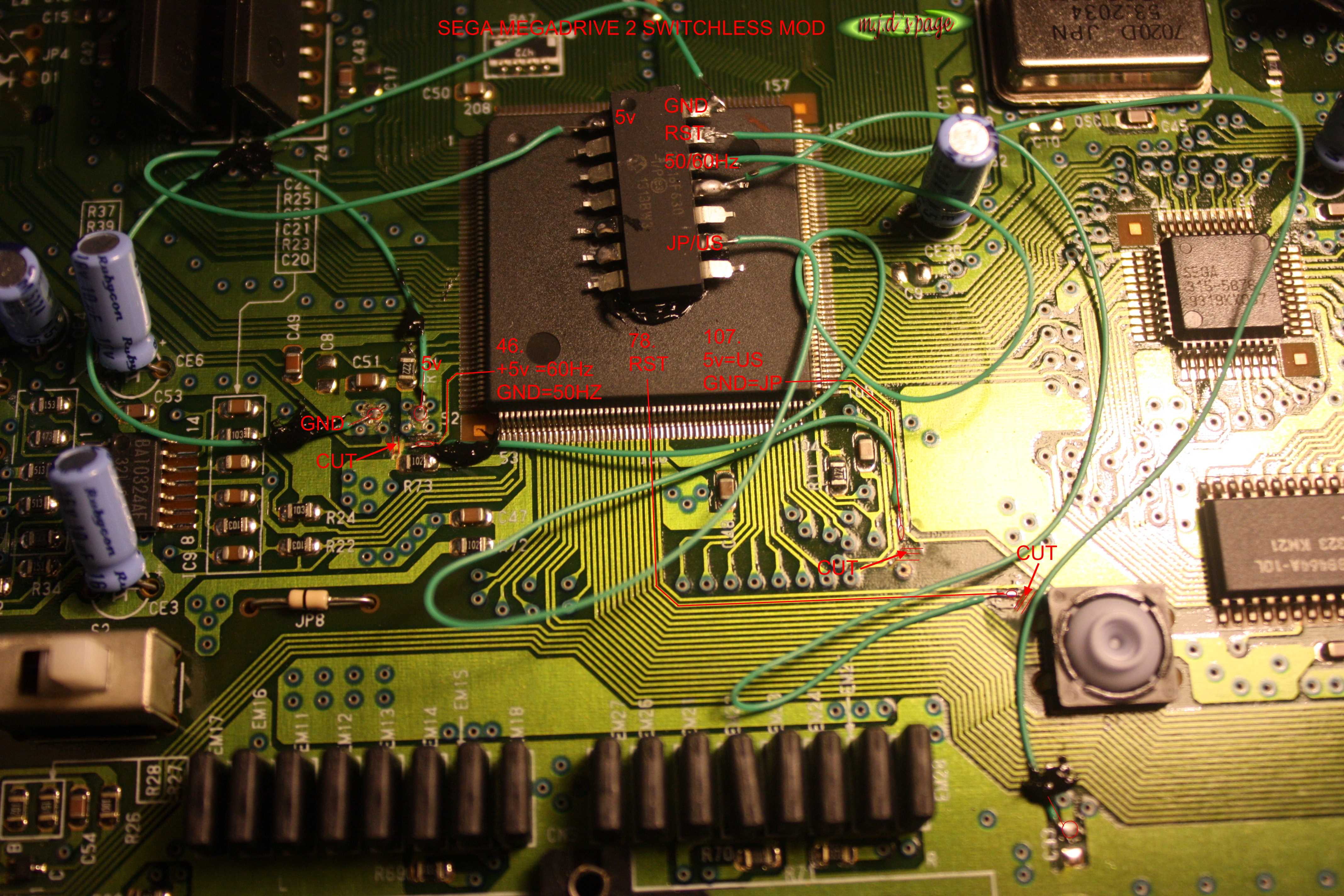

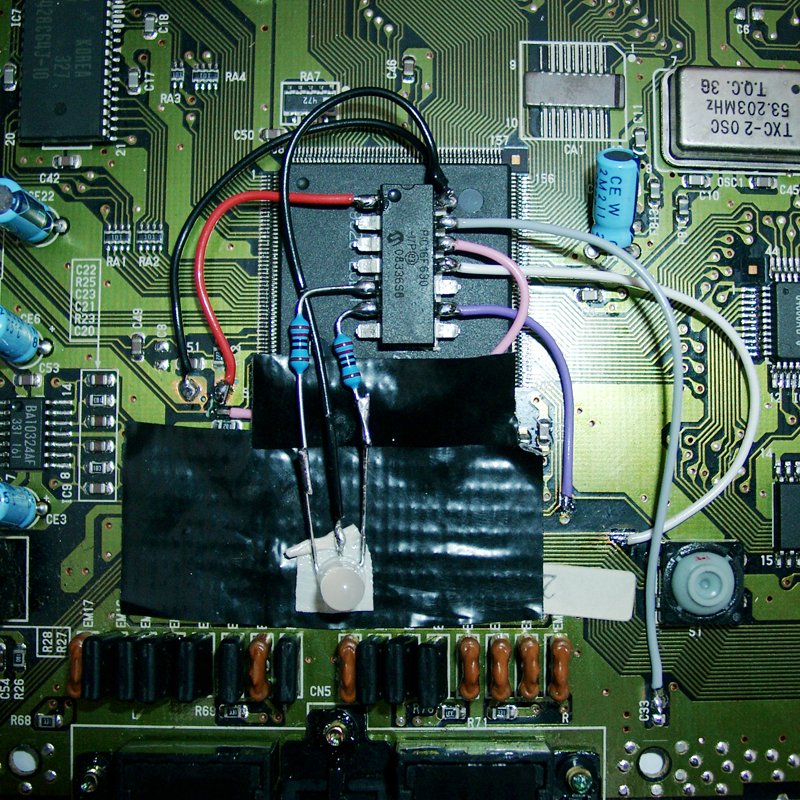

Installation picture big size

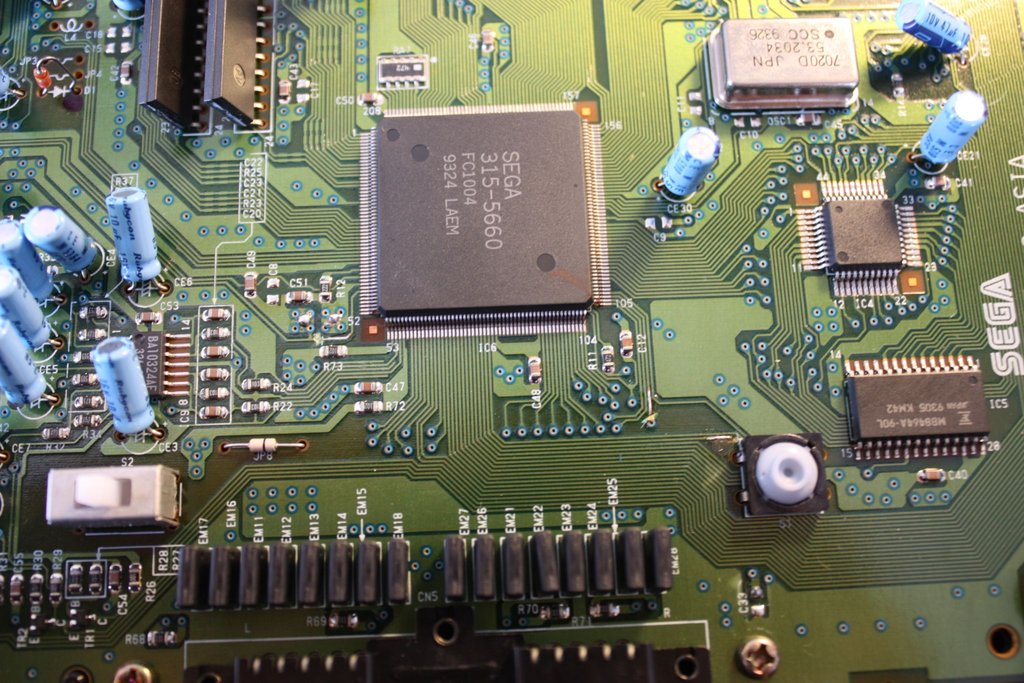

-Check 315-56600-02 chip
-Cut the circuit from pin 46
-Link pin 46 to pin 10 of pic (pin 46 to GND = 50Hz; pin 46 to 5v = 60Hz)
-Cut the circuit from pin 107
-Link pin 107 to pin 13 of pic (pin 46 to GND = JAP; pin 46 to 5v = ENG)
-Cut the circuit to the reset button from pin 78
-Link pin 78 to pin 11 of pic (Reset function)
-Link reset button to pin 9 of pic (Interception of reset impultion)
-+5v to pin 1
-GND to pin 8
-Pin 5 & 6 are +5v to cathode of bi-led, anode to GND.
How it work:
Quick press on reset button make reseting the console
Half second press on reset button make frequency (50/60Hz)
One second or more pressing the reset button make change the region (US / EU / JAP), the led change color
Video 1
Video 2
